Condensate Handling

Condensate Drains

Quality no-loss drains are critical to any system that requires efficient, high quality compressed air. KAESER Eco and AMD series automatic drains remove condensate at rates up to 500 Gallons per hour without wasted compressed air.

Electronic No-Loss Drains

KAESER’s Eco-Drain Series of electronic condensate drain traps efficiently eliminate moisture from the compressed air system. They are ideally suited for equipment such as dryers and filters. The capacitance sensor technology ensures that only condensate is released – not valuable compressed air.

Important features and advantages:

  • Reliable condensate removal in a variety of  industrial and commercial environments
  • Wear-free, capacitance level sensor
  • Electronically controlled diaphragm valve releases condensate not compressed air
  • Patented valve technology protects internal components from contamination even in harsh environments
  • Simple installation and maintenance

electronic-drains

Pneumatic No-Loss Drains

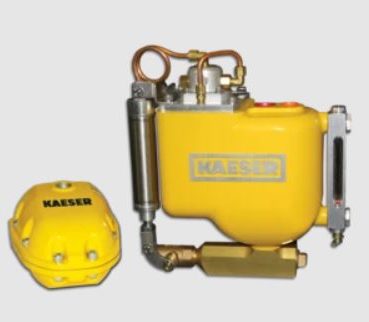

Kaeser Automatic Magnectic Drains (AMD) remove condensate and other contaminants from your air system. The large capacity of automatic magnetic drains makes them suitable for a broad range of applications. Highly dependable and requiring little maintenance, automatic magnetic drains maintain a “liquid seal” which prevents compressed air loss. Unlike traditional float drains, the operating mechanisms are isolated from condensate so no fouling or sticking occurs.

pneumatic-drains

Condensate Management Systems

The Kaeser Condensate Filter (KCF) is a convenient and economical way to handle contaminated compressor condensate in most small to midsize systems. The easily-removable cartridge separates the oil from the water. The water can be discharged into any municipal drain. After 4-6 months of use, the cartridge is then sent for proper disposal in the disposal bag provided.

Important features and advantages:

  • Compatible with most standard lubricants
  • Simple, reliable operation
  • Quick and easy filter cartridge changeout
  • No electricity required for operation
  • Multiple units connect together to handle larger systems
  • Multiple lines can be connected via optional manifold
  • Disposal bag provided with each cartridge

condensate-mgmt-systems
